SPECIFICATIONS

Haltemoment: 3.00Nm(424.83oz.in)

Hochbetriebenes Chemikalienunternehmen: Keine

Markenname: STEPPERONLINE

Modellnummer: 23HS39-5004S

Phase: 2

Schrittwinkel (Grad): 1.8deg

Strom / Phase: 5.0A

Typ: Hybride

Ursprung: CN (Herkunft)

Zertifizierung: ce

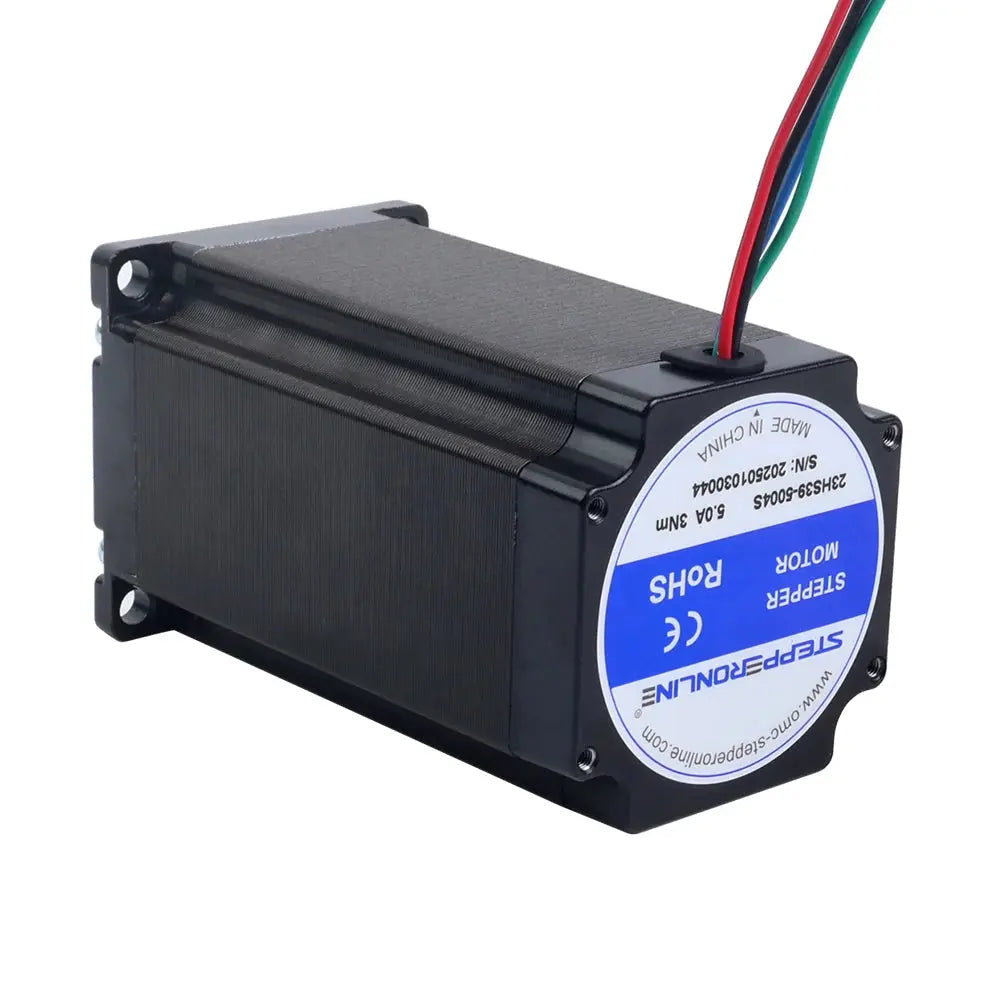

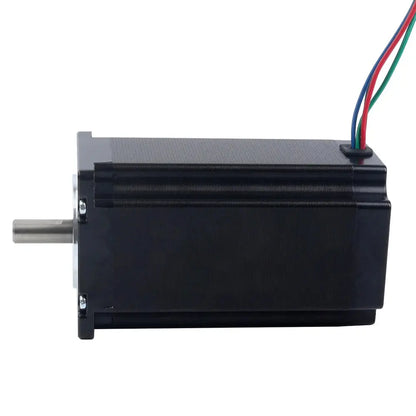

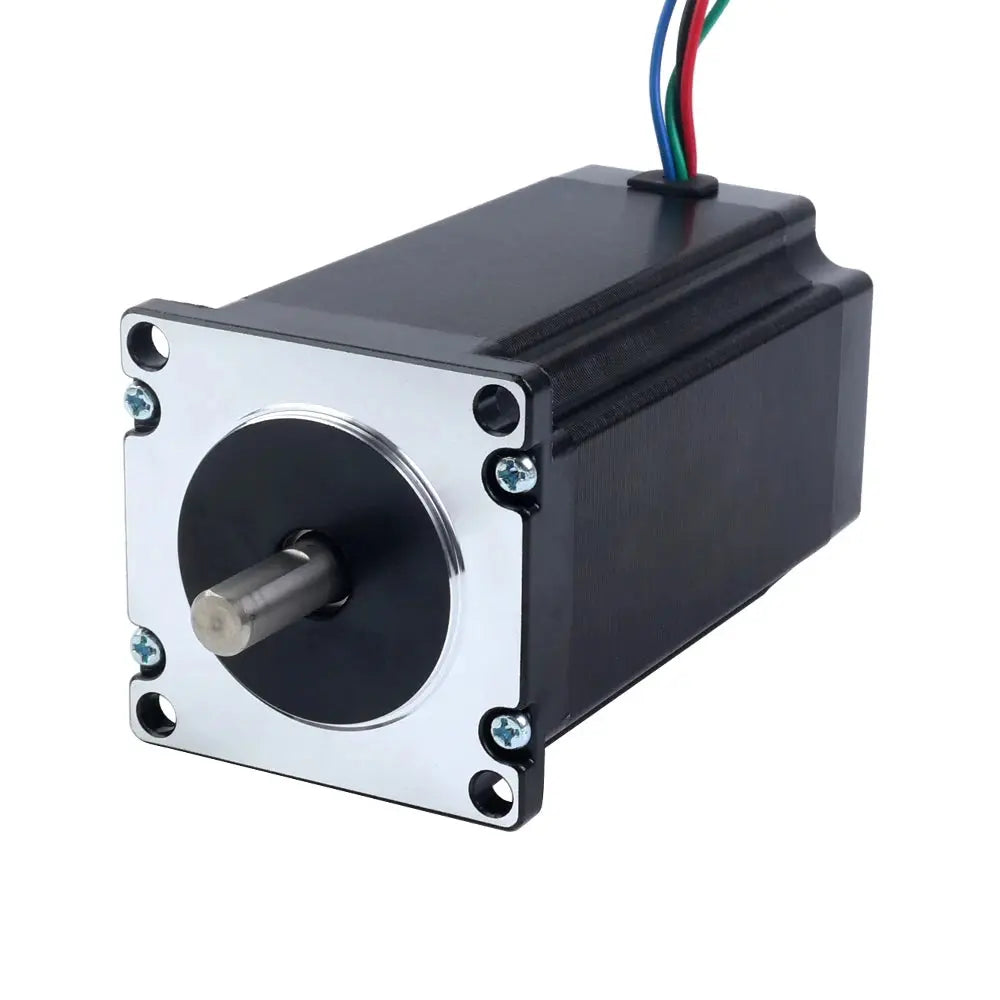

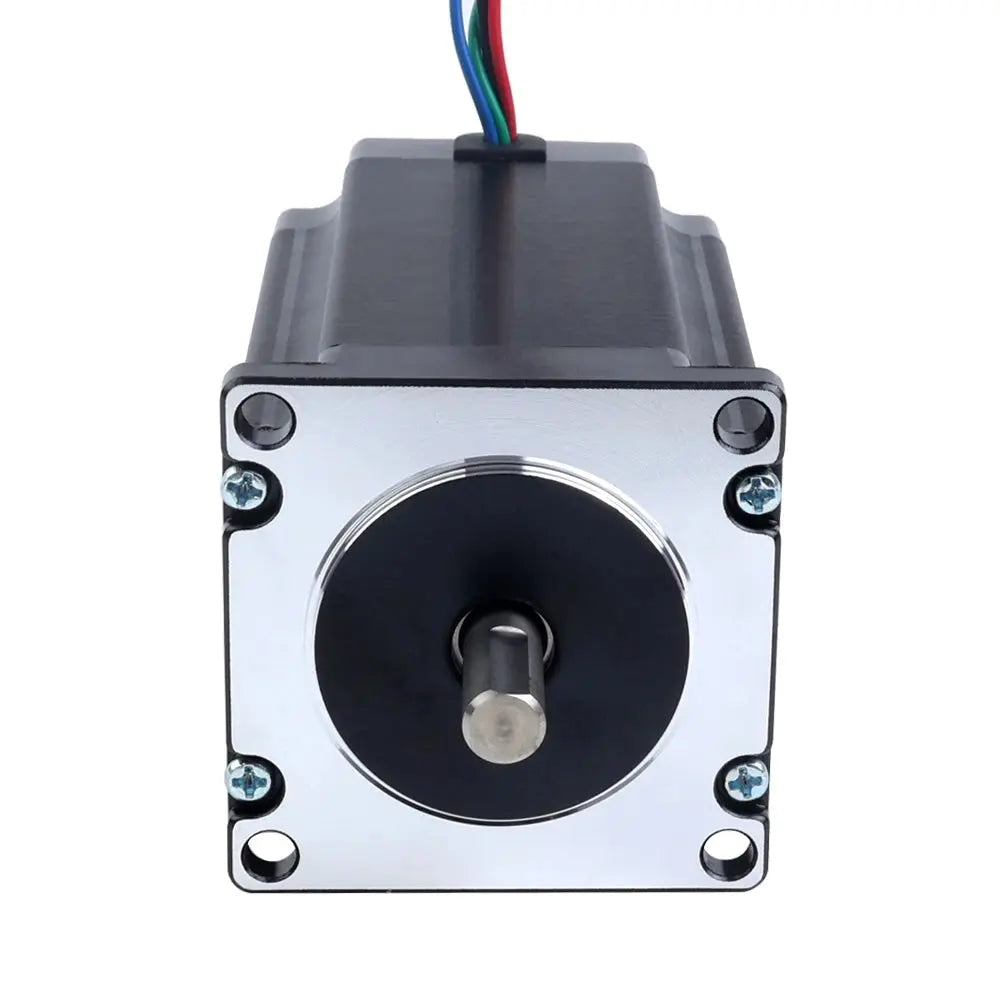

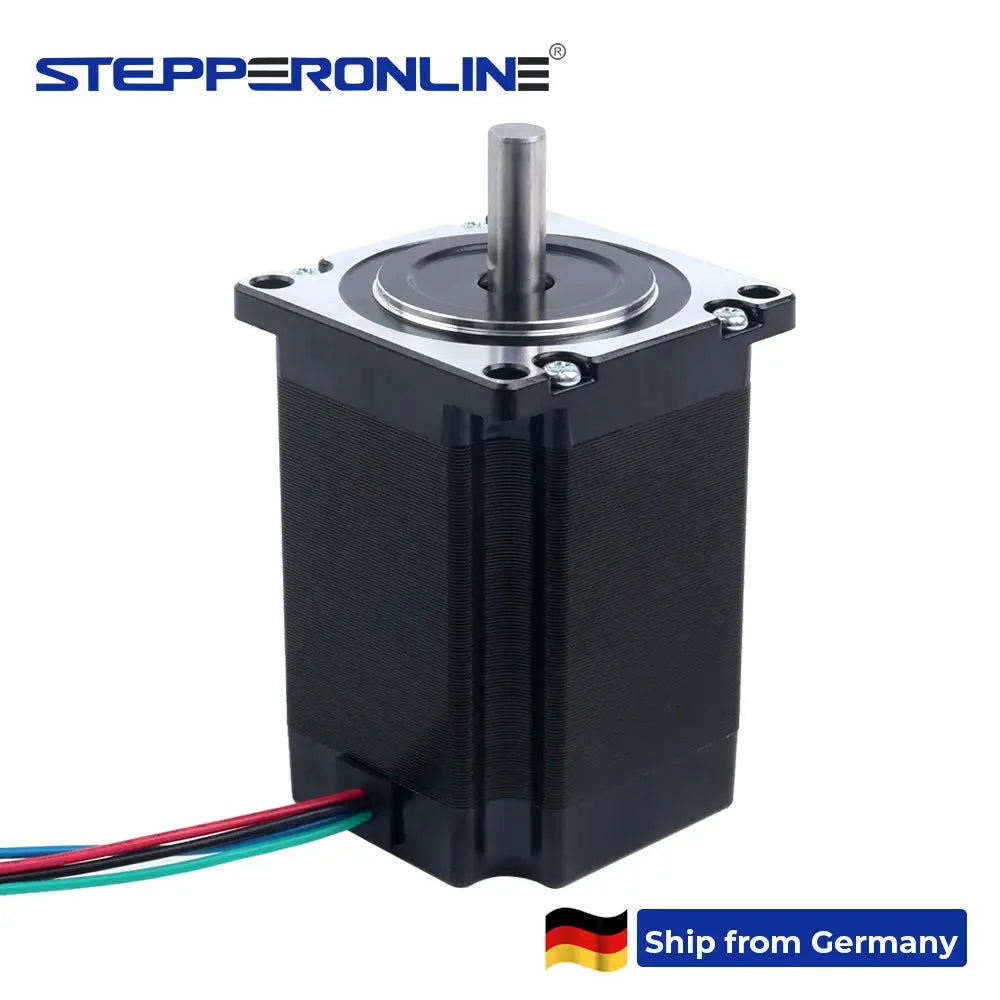

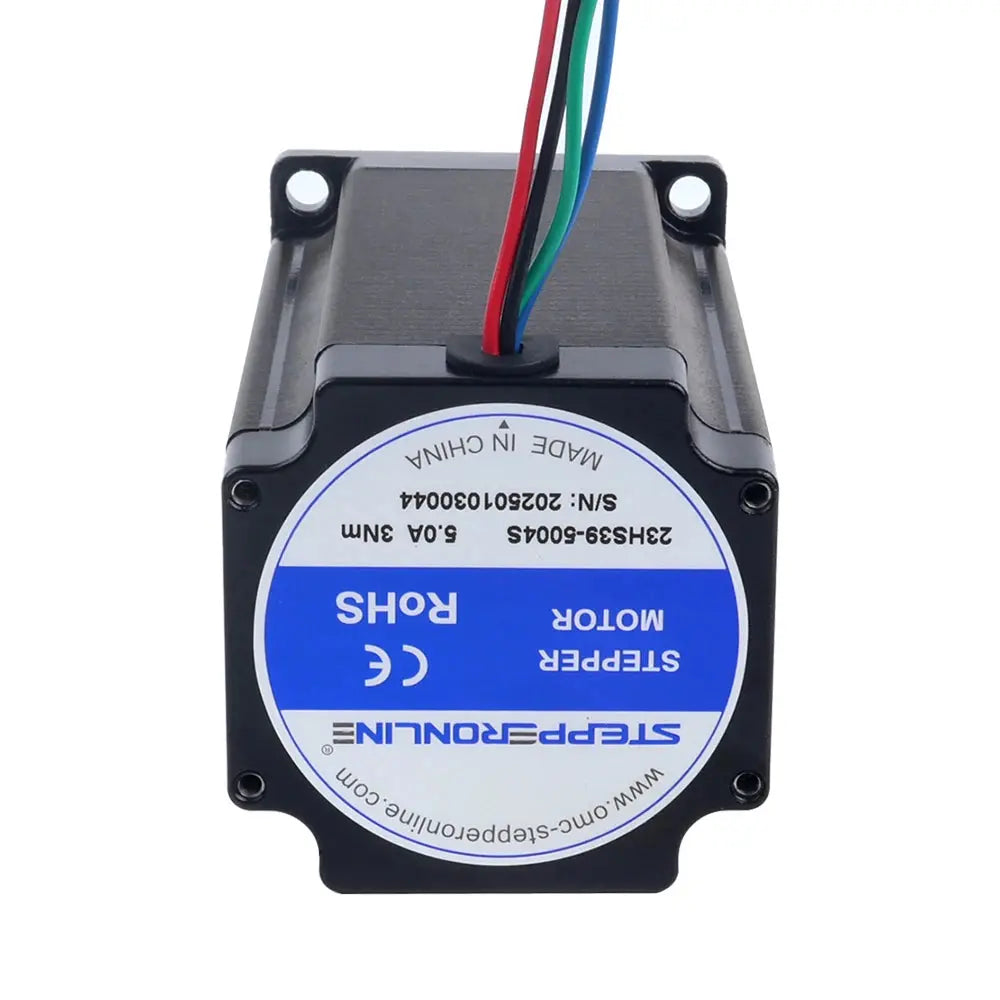

The NEMA 23 stepper motor has a rated current of 5.0A and a holding torque of 3.0Nm(424.83oz.in). With a step angle of 1.8 degrees and dimensions of 57x57x100mm, this 4-wire motor is ideal for precise positioning in various automation applications, offering reliable performance and robust torque output in a compact form factor.

• Manufacturer Part Number: 23HS39-5004S

• Motor Type: Bipolar Stepper

• Step Angle: 1.8deg

• Holding Torque: 3.00Nm(424.83oz.in)

• Rated Current/Phase: 5.0A

• Phase Resistance: 0.6ohms±10%

• Inductance: 2.8mH±20%(1KHz)

• Insulation Class: B 130°C[266°F]

• Frame Size: 57 x 57mm

• Body Length: 100mm

• Shaft Diameter: Φ8mm

• Shaft Length: 21mm

• D-cut Length: 15mm

• Number of Cables: 4

• Cable Length: 400mm
